r functions: city skylines

in programming on 28 December 2013

Summary

An artistic rendering of Boston's skyline using R. Code and source data are included.

article image

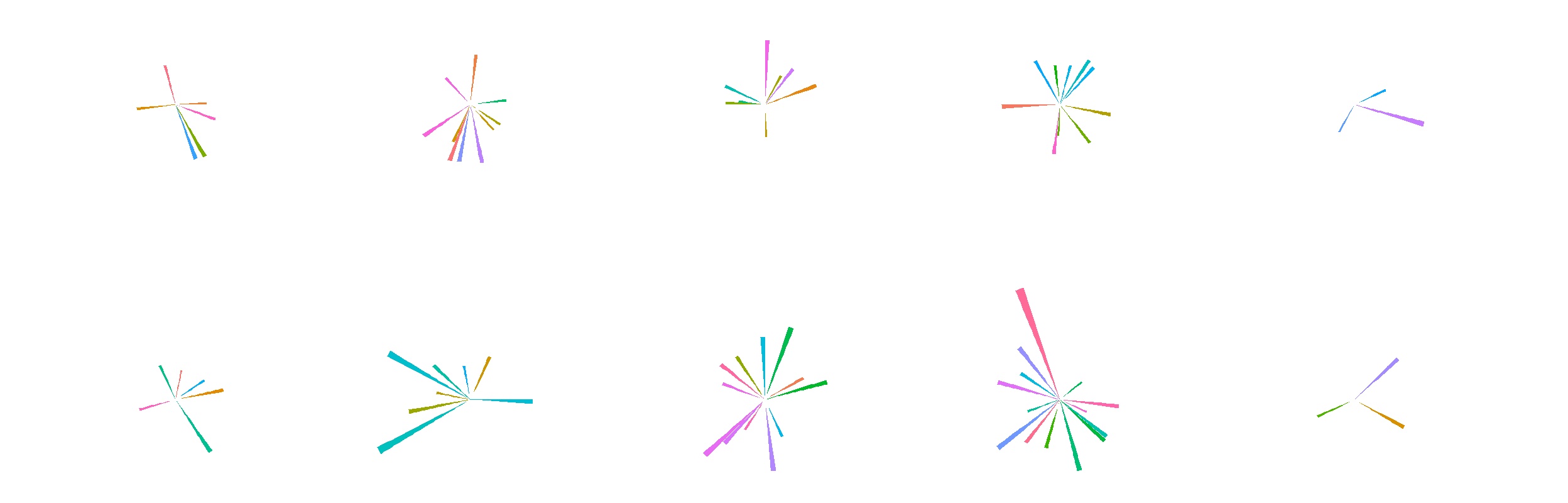

boston city skyline in polar coordinates

Been interested in using R (or other programming languages) to make artistic renderings of data—that is, representations that might not be as informative as well-made graphs, but are pleasing to look at purely for enjoyment. Took a stab at it earlier this year when representing usage statistics of a music group (club coat check member statistics) and for Cheyne-Stokes respiration. Wanted to make an artistic rendering of Boston's city skyline, again leaning on the use of polar coordinates as it is visually more interesting that using Cartesian. The code and csv file are included below.

boston building height csv files

download city_skylines_boston.R

R / S+
  1. # makes an artistic rendering of the boston city skyline
  2. # biafra ahanonu
  3. # updated: 2013.12.28
  4.
  5. main <-function(inputFile,savePlot=1,saveFilename="city_skyline_boston.png",nrow=2,ncol=5,...){
  6.         # load in the data
  7.         dataFile = read.table(inputFile,sep=",",header=T);
  8.         # randomly group the buildings
  9.         dataFile$cat = round(runif(nrow(dataFile),1,nrow))
  10.         dataFile$scat = round(runif(nrow(dataFile),1,ncol))
  11.         # plot the data
  12.         cityPlot = ggplot(dataFile,aes(x=sample(c(nrow(dataFile))),y=stories,fill=building))+
  13.         scale_fill_hue()+
  14.         guides(fill=FALSE,group=FALSE)+
  15.         geom_bar(stat="identity",position="dodge")+
  16.         theme(
  17.                 axis.text.x = element_text(angle=90,hjust=1,vjust=.5,color="white"),
  18.                 panel.background=element_rect(fill="white",colour="white"),
  19.                 strip.text = element_blank(),
  20.                 strip.background = element_blank(),
  21.                 panel.grid = element_blank(),
  22.                 axis.text = element_blank(),
  23.                 axis.ticks = element_blank(),
  24.                 axis.title = element_blank()
  25.                 )+
  26.         facet_grid(cat~scat)+
  27.         coord_polar()
  28.
  29.         # decide whether to save or display plot
  30.         if(savePlot==1){
  31.                 png(paste(saveFilename,sep=""),width=2400,height=2400,res=400,pointsize=1,antialias = "cleartype")
  32.                         print(cityPlot)
  33.                         # makeFootnote()
  34.                 dev.off()
  35.         }else{
  36.                 print(cityPlot)
  37.         }
  38. }
  39.
  40. # run script
  41. main("buildings.height.boston.csv");

-biafra
bahanonu [at] alum.mit.edu
